1. Product Overview

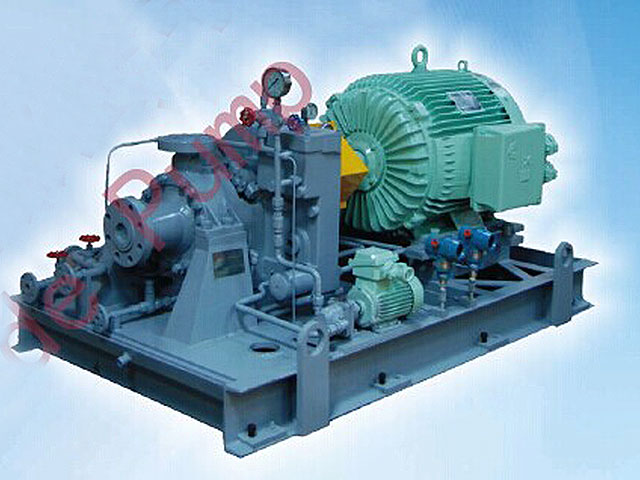

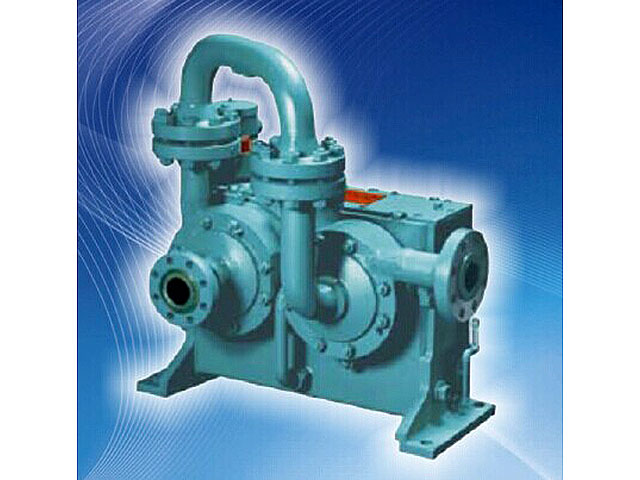

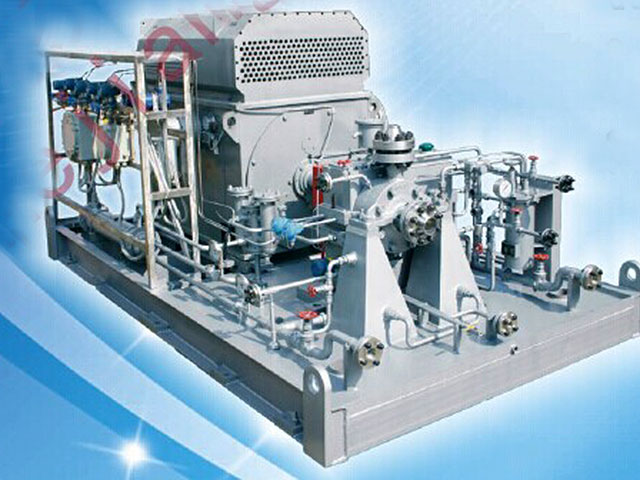

Company currently has a GSB-S horizontal double pump head high-speed centrifugal pumps, GSB-H with low horizontal high-speed centrifugal pump in the tank ,GSB-Q forced lubrication for horizontal high-speed centrifugal pumps,horizontal high-speed centrifugal pump GSB-F splash lubrication,GSB-L vertical high speed centrifugal pumps,suitable for transporting a variety of temperature and concentration of the chemical medium,petrochemical,coal chemicals, fine chemicals ,chemical the ideal choice.The dual-phase alloy steels and other specialty metals, solution for users of acetic acid ,sulfuric acid ,methyl amine(urea) and amine liquid corrosive media and particle abrasion problems.

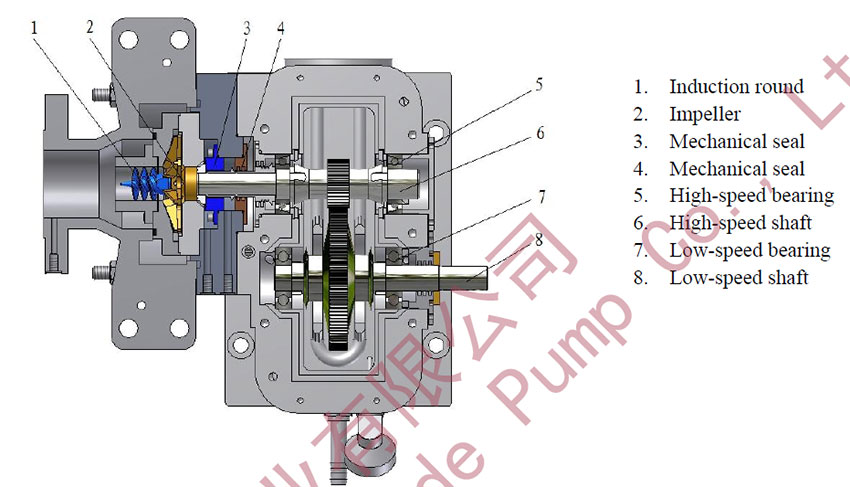

Product Features GSB-F series splash lubrication high-speed pump mainly composed by the pump head, growth device ,base ,diaphragm coupling,coupling shield and motors ,etc. This illustration shows the GSB-F structure diagram .
1）Flow Part GSB-F series high-speed pump flow induced the main part of the induction round and the centrifugal round,pump body .The flow part is by the optimal design ,and to ensure the GSB-F series high-speed pump with excellent performance .Set up front induction round improve the cavitation performance of the pump .It’s types are two kinds of uniform pitch and changing pitch. Optimization design of the impeller with excellent hydraulic properties,so pump has high efficiency and cavitation performance as well as good ,and has high head coefficient and with almost not change in the stability head curve etc.Pump has two kinds of flow:the ring and the Archimedes screw linear. 2) Growth Device For the long-term operation of the GSB-F series high-speed pump uses the level 1 gear to grow the speed,growth speed for the horizontally split box structure.It’s bearings gears Iubrication and cooling using “with oil -centrifugal jet-Sub-oil structural combinations”of the patented technology,oil supply is stable and reliable ,so as to ensure the smooth operation of pump ,little vibration ,low noise ,safe and reliable . 3) Mechanical Seal GSB-F series high-speed pump seal according to different medium condition required to select different materials ,different types of mechanical seals .Mechanical seal type has single mechanical seal ,double mechanical seal ,serial seal and metal bellows tandem seal .And accoriding to the needs of the user and can design the hot siphon tank between two heal seal machine to ensure high speed centrifugal pump seal reliability in the used to transport the medium easilu vaporization.Mechanical seal is designed to meet U.S.API682 standard.
