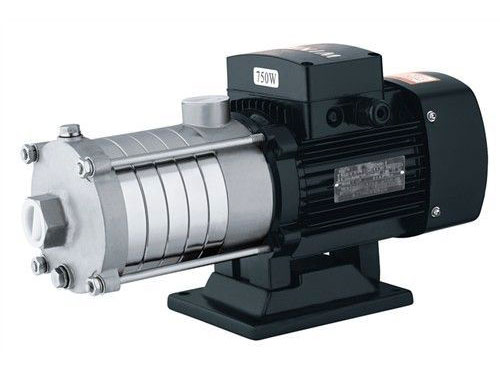

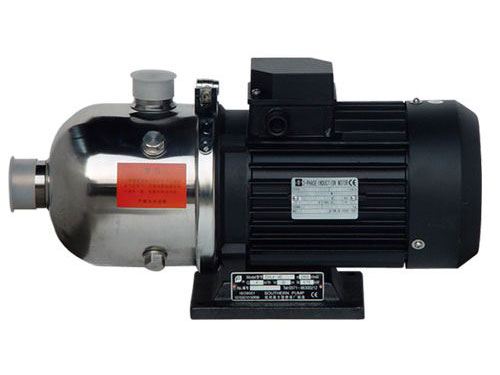

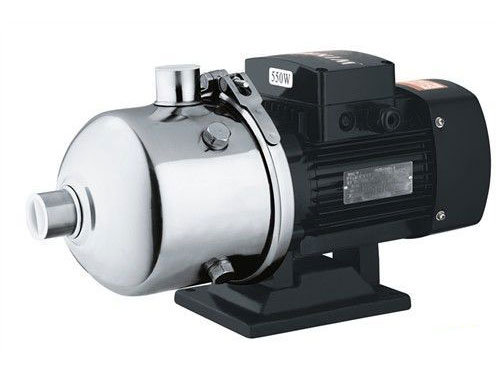

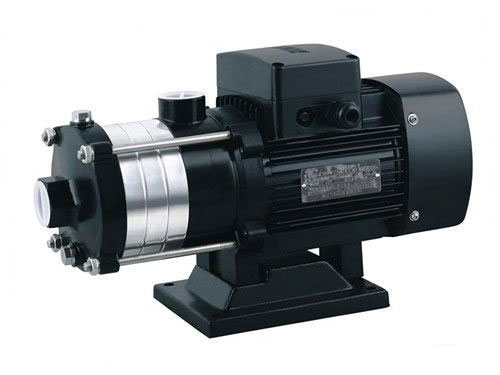

The Overview of the pump
CHL,CHLK and CHLF(T) Light horizontal multi-stage centrifugal pump adopts the exemption of mechanical seal. Pump parts adopt stainless steel material (304 or 316), which has low noise, light corrosion resistance, good appearance, small size, light weight, long service life, etc. Use in thin, clean, coagulation, explosion, liquid without solid particles or fibers.Liquid temperature:normal temperature -15℃ to +70℃ hot water +70℃ to +110℃ the maximum ambient temperature: +40℃ the maximum operation pressure:10bar Maximum inlet pressure being limited by the maximum operating pressure. Medium PH:4-9 Electric motor is fully enclosed, air-cooled diode motor protection grade:IP55 Class of insulation:F Standard voltage: 50Hz： 1×220-240V 3×220-240V 380-415V 60Hz： 1×220-240V 3×220-240V 380-415V.
Range Of Application
CHL,CHLK and CHLF(T) pump is mainly used for family central air conditioning circulation and industrial liquid transmission. Such as mineral water, soft water, purification system, such as light oil circulation and pressurization. , minitype central air-conditioning, cooling system, industrial cleaning, water treatment, water purification, aquaculture, fertilizer application, environment/measurement system.
