Product Induction

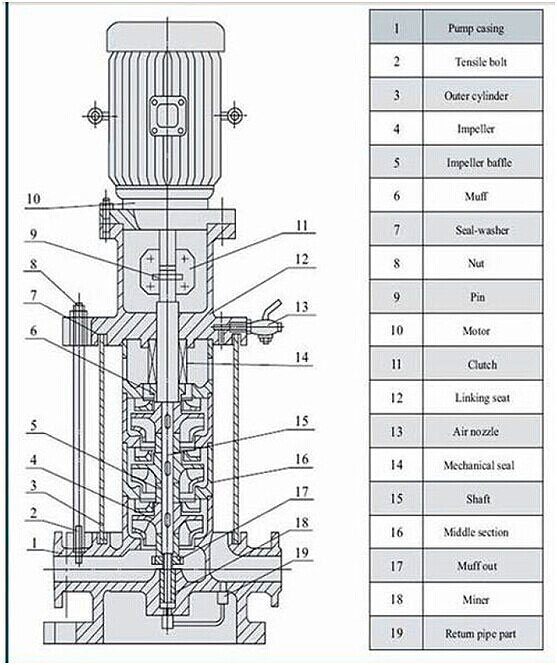

GDL type Vertical multistage pipeline centrifugal pump in abroad on the basis of combining the use of user requirements and fire related standards,according to JB/TQ6435-92 standard design and manufacture of a new generation of products. Pump suction and discharge in the same line. By of rotor shaft, impeller, the impeller block set, shaft sleeve and other parts, water, middle, water paragraphs with tighten bolt connection. Shaft sealing adopts mechanical seal, with the balance chamber pressure lubrication and cooling water. Is the major industry of hot and cold water or liquids such as physical and chemical properties similar to water is the best pump for the transmission.
Range Of Application
GDL type Vertical multistage pipeline centrifugal pump is widely used in high pressure hot and cold running system of water cycle and pressurization, high-rise buildings and many sets of parallel water supply, fire pump, boiler feed water and cooling water system and various kinds of flushing fluid transport and so on, It’s the major industry of hot and cold water or liquids such as physical and chemical properties similar to water is the best pump for the transmission.
Features Of The Product
1. Advanced hydraulic model, high efficiency and wide performance.
2. Installation, convenient maintenance, vertical structure, less occupied area, pipeline installation, import and export can like valves installed in any position and any direction, convenient in installation and maintenance.
3. Beautiful shape: using high quality stainless steel coat.
4. Less operation, maintenance cost, high quality mechanical seal, wear resistance, no leakage and long service life, low failure rate, maintenance costs less operation.
5. Unique type of widget, reduction of the noise: unique of hydraulic parts design, good flow properties, the maximum reduction of the flow noise.
